Adjusting older Duncan Drill Clamps to fit new style Drill Points

Date: 07-04-2021
Technical Knowledge

Have you got an older style Duncan Seed Drill / Till Seeder that needs new Drill Points?

These machines can easily be converted to accommodate the new style Wearparts Drill Points to suit Duncan by making a small change to your existing clamps.

Converting to these points has many advantages including,

  • Points last longer.
  • Reduced wear costs.
  • Reduced downtime as points are changed less often.



Converting the clamps is easy.

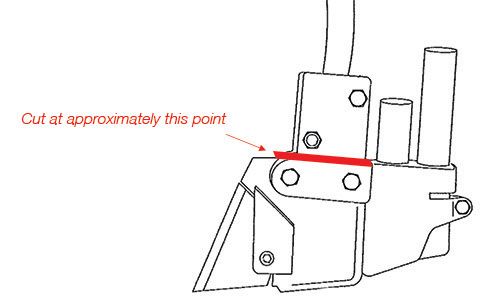

Simply cut the clamp just above the bottom row of two bolts to create a rectangular clamp. See the image below for the approximate location.

Please Note: This image shows approximate cut level only. Please check your individual clamp against the new point before cutting

Duncan Clamp Adjustment

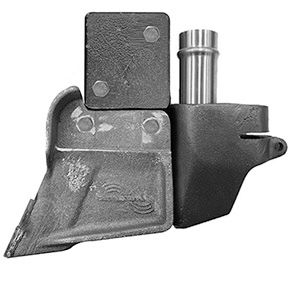

The newer style point is then bolted on, with the clamp situated above.



Clamp Adjusted



If you'd like more information or to order parts to suit Duncan Seed Drills give us a call on 0800 00 31 32.
